Использовать изображение как кнопку в kivy
Kivy - это платформенно-независимый инструмент с графическим интерфейсом на Python. Поскольку его можно запускать на Android, IOS, Linux, Windows и т. Д., Он в основном используется для разработки приложений Android, но это не означает, что его нельзя использовать в приложениях для настольных компьютеров.
Как мы уже обсуждали ранее, как работать с изображениями, а теперь мы узнаем, как использовать изображения и создавать с ними кнопку. В этой статье мы узнаем, как использовать изображение в качестве кнопки и как добавить к этому изображению функциональность и стиль.
To learn about it you must be aware about some properties, that are –
background_down :
1) Background image of the button used for the default graphical representation when the button is pressed.
2) background_down is a StringProperty .background_normal :
1) Background image of the button used for the default graphical representation when the button is not pressed.
2) background_normal is also a StringProperty .background_disabled_normal :
1) Background image of the button used for the default graphical representation when the button is disabled and not pressed.
2) background_disabled_normal is also a StringProperty .Notes :
1) Now its only sufficient to understand that string property means they only take values in string that means like background_down: “normal.png” like this.
2) On click on the image it looks same like a simple button (as we uses it in a button).
В этой статье используются изображения:
normal.png:
down.png:
Basic Approach :
-> import kivy
-> import kivy App
-> import button
-> set minimum version(optional)
-> Extend the class :
-> create an image a button
-> Do styling
-> Arrange call back if needed
-> Add and return a button
-> Run an instance of the classKivy Tutorial – Learn Kivy with Examples.
## Sample Python application demonstrating that ## how to create button using image in kivy ################################################## # import kivy module import kivy # this restrict the kivy version i.e # below this kivy version you cannot # use the app or software kivy.require("1.9.1") # base Class of your App inherits from the App class. # app:always refers to the instance of your application from kivy.app import App # creates the button in kivy # if not imported shows the error from kivy.uix.button import Button # this restrict the kivy version i.e # below this kivy version you cannot # use the app or software kivy.require("1.9.0") # to change the kivy default settings we use this module config from kivy.config import Config # 0 being off 1 being on as in true / false # you can use 0 or 1 && True or False Config.set("graphics", "resizable", True) # class in which we are creating the image button class ButtonApp(App): def build(self): # create an image a button # Adding images normal.png image as button # decided its position and size btn = Button(text ="Push Me !", color =(1, 0, .65, 1), background_normal = "normal.png", background_down ="down.png", size_hint = (.3, .3), pos_hint = {"x":0.35, "y":0.3} ) return btn # creating the object root for ButtonApp() class root = ButtonApp() # run function runs the whole program # i.e run() method which calls the target # function passed to the constructor. root.run() |

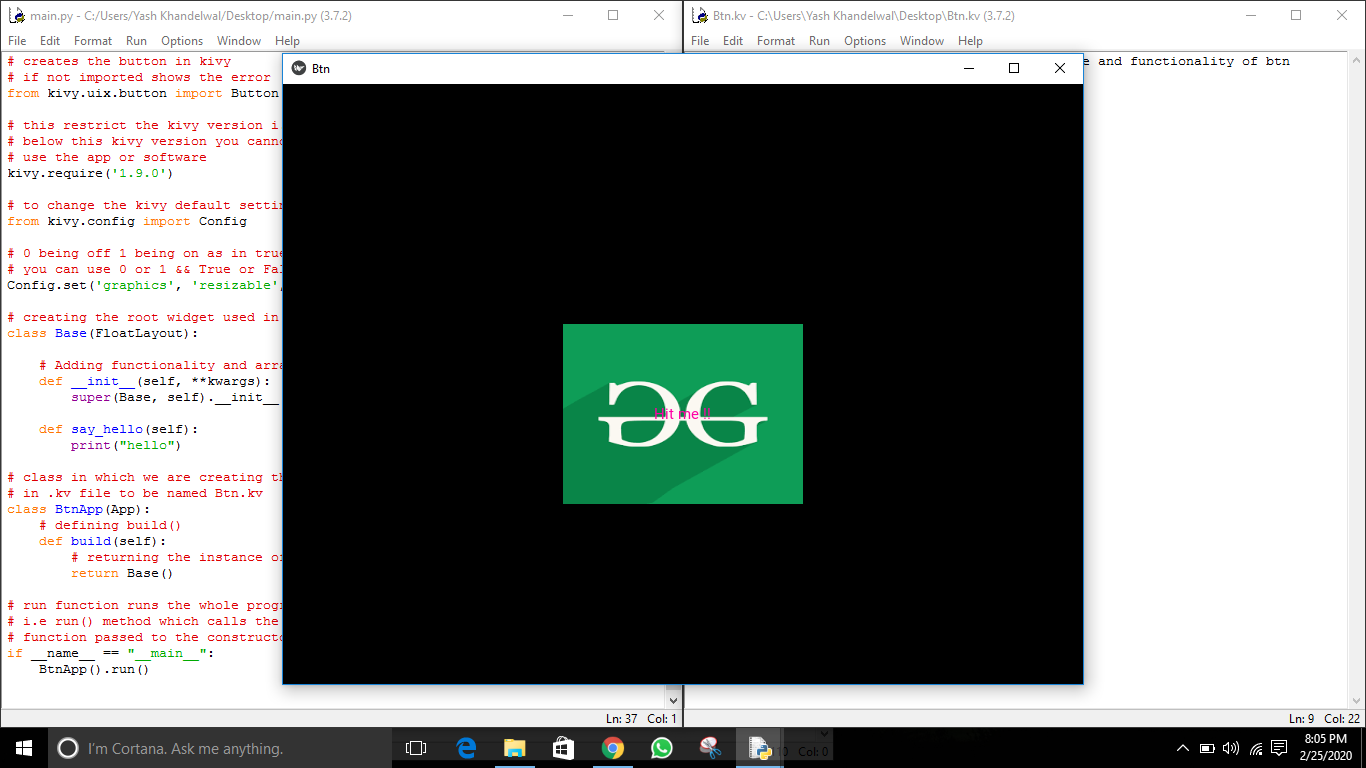

Output:
Code to implement the styling and arranging a callback to the button –
## Sample Python application demonstrating that ## how to create button using image in kivy ################################################## # import kivy module import kivy # this restrict the kivy version i.e # below this kivy version you cannot # use the app or software kivy.require("1.9.1") # base Class of your App inherits from the App class. # app:always refers to the instance of your application from kivy.app import App # creates the button in kivy # if not imported shows the error from kivy.uix.button import Button # this restrict the kivy version i.e # below this kivy version you cannot # use the app or software kivy.require("1.9.0") # to change the kivy default settings we use this module config from kivy.config import Config # 0 being off 1 being on as in true / false # you can use 0 or 1 && True or False Config.set("graphics", "resizable", True) # class in which we are creating the imagebutton class ButtonApp(App): def build(self): # create a fully styled functional button # Adding images normal.png and down.png btn = Button(text ="Push Me !", background_normal = "normal.png", background_down = "down.png", size_hint = (.3, .3), pos_hint = {"x":0.35, "y":0.3} ) # bind() use to bind the button to function callback btn.bind(on_press = self.callback) return btn # callback function tells when button pressed def callback(self, event): print("button pressed") print("Yoooo !!!!!!!!!!!") # creating the object root for ButtonApp() class root = ButtonApp() # run function runs the whole program # i.e run() method which calls the target # function passed to the constructor. root.run() |

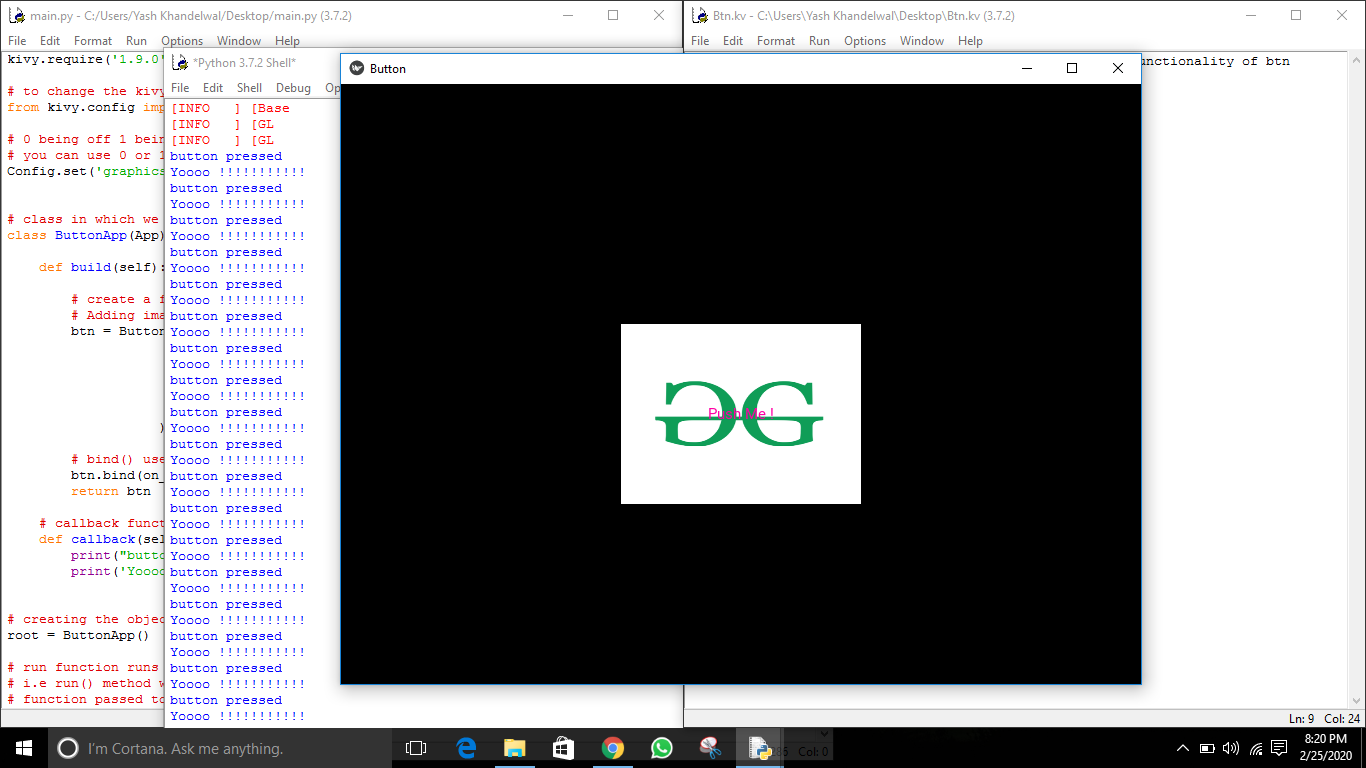

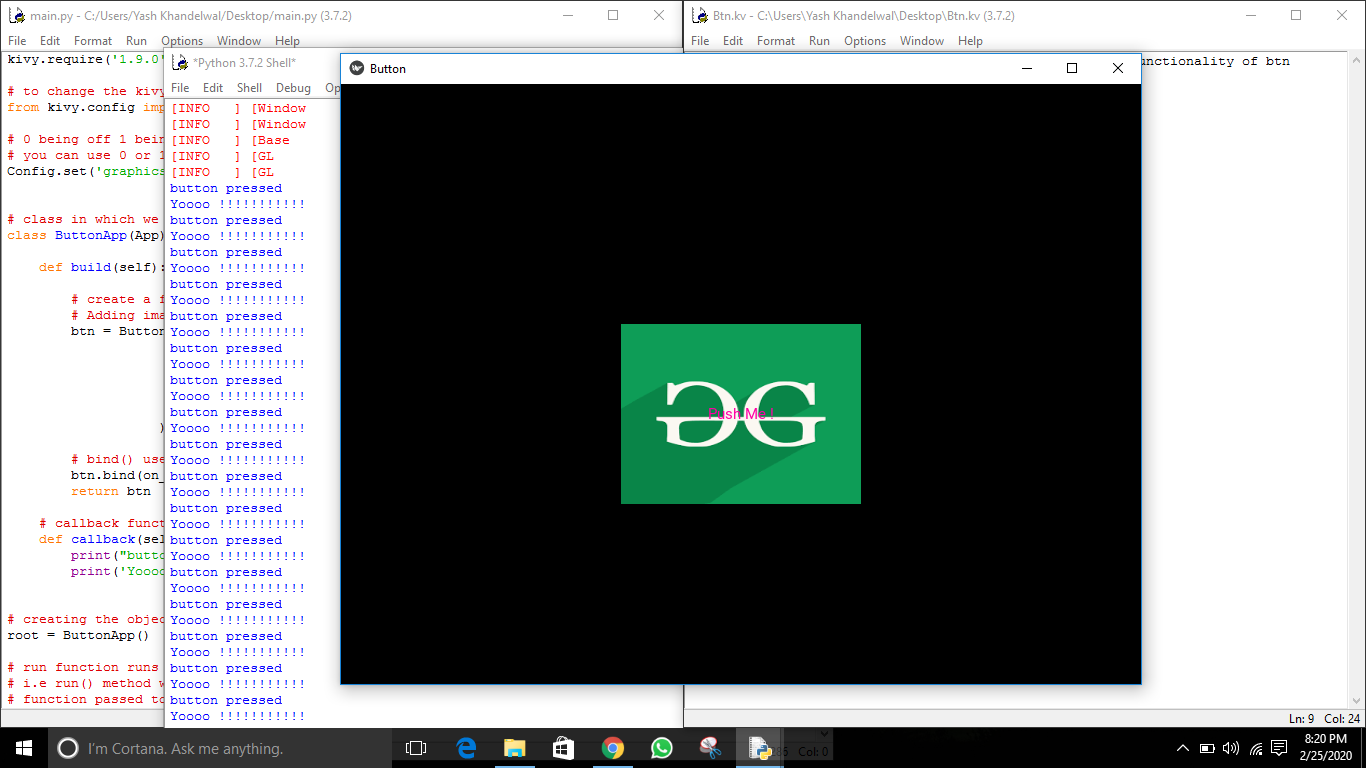

Output:
